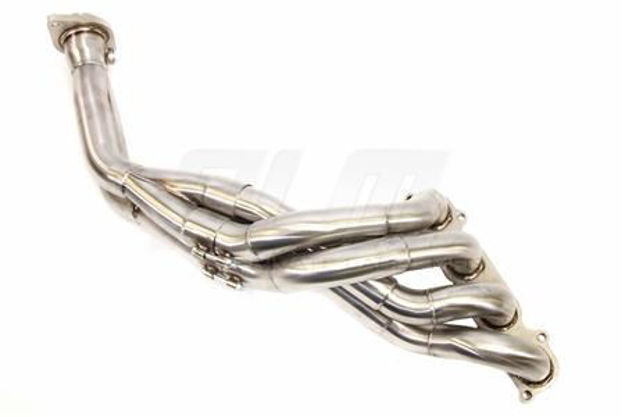

PLM Power Driven S2000 K-Swap K20 Tri-Y Header

Sorry - this product is no longer available

SKU: PLM-HK2F-HEADER
$575.00
The easy button. Right off the shelf and right into your Kswapped S2000.
+ -

Based on popular demand and customers' request, here it is!  The PLM header that allows your S2000 to run a K-Series engine - "K2F" swap setup.

Made with high quality stainless steel; true Tri-Y collector, this header features a multi-step tubing for maximum exhaust flow.  Primary tubing off the flange is 1.75", then step into 1.875", and then to 2.0" with 2.5" on the collector outlet.  The header bolt-on directly to factory S2000 cat-back exhaust at the catalytic converter or test pipe position.

When installing, the height of the header will be adjustable, then locked in with the double-nut system to be compatible with different plates and engine mount kits.

This K2F (F2K) header allow your to install it on a K20 K24 K-Series engines with your S2000 transmission.  You will need to use our K2F adapter plate to mate the S2000 transmission to the K20 K24 engine.

  • Includes all gaskets & hardware
  • For K-Swap in S2000 with S2000 transmission.
  • Brand New In Box
  • Made of 304 Stainless steel
  • One year limited warranty
  • Short tube Tri-Y header
  • True 2.5" collector
  • CNC Machined manifold flanges
  • Flange is .38" which is just about 3/8" thick
  • 18 gauge, 304 grade stainless steel, measured at .049" to .050"
  • Two-piece slip-fit design with included hardware for assembly
  • WILL WORK WITH RHD VEHICLES IF A ETD (ENGINE TORQUE DAMPER) IS USED
  • When installing, the height of the header (at the tri-y section) will be adjustable, then locked in with the double-nut system to be compatible with different plates and engine mount kits.
*
*
*
*
