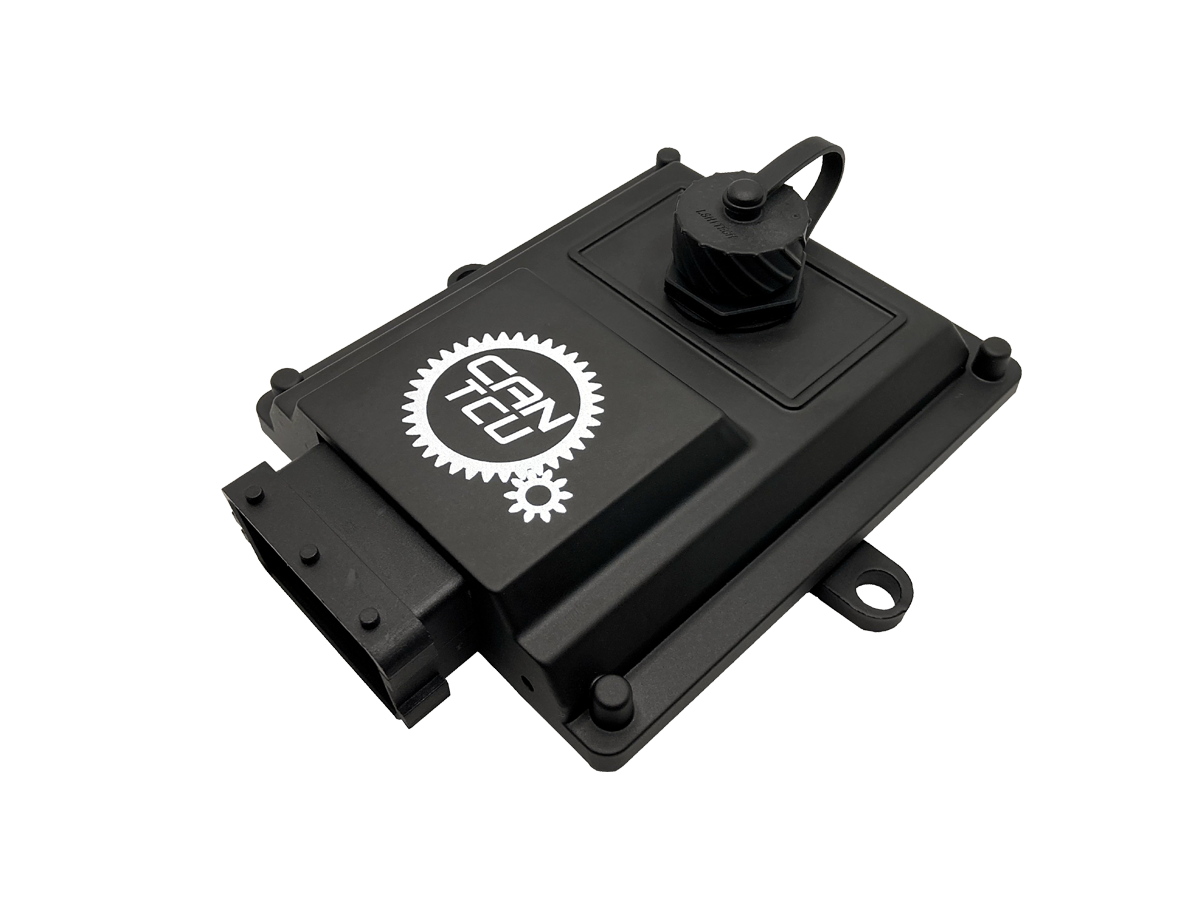

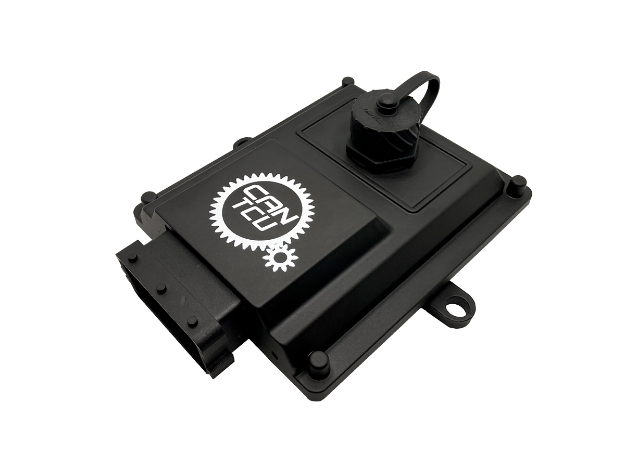

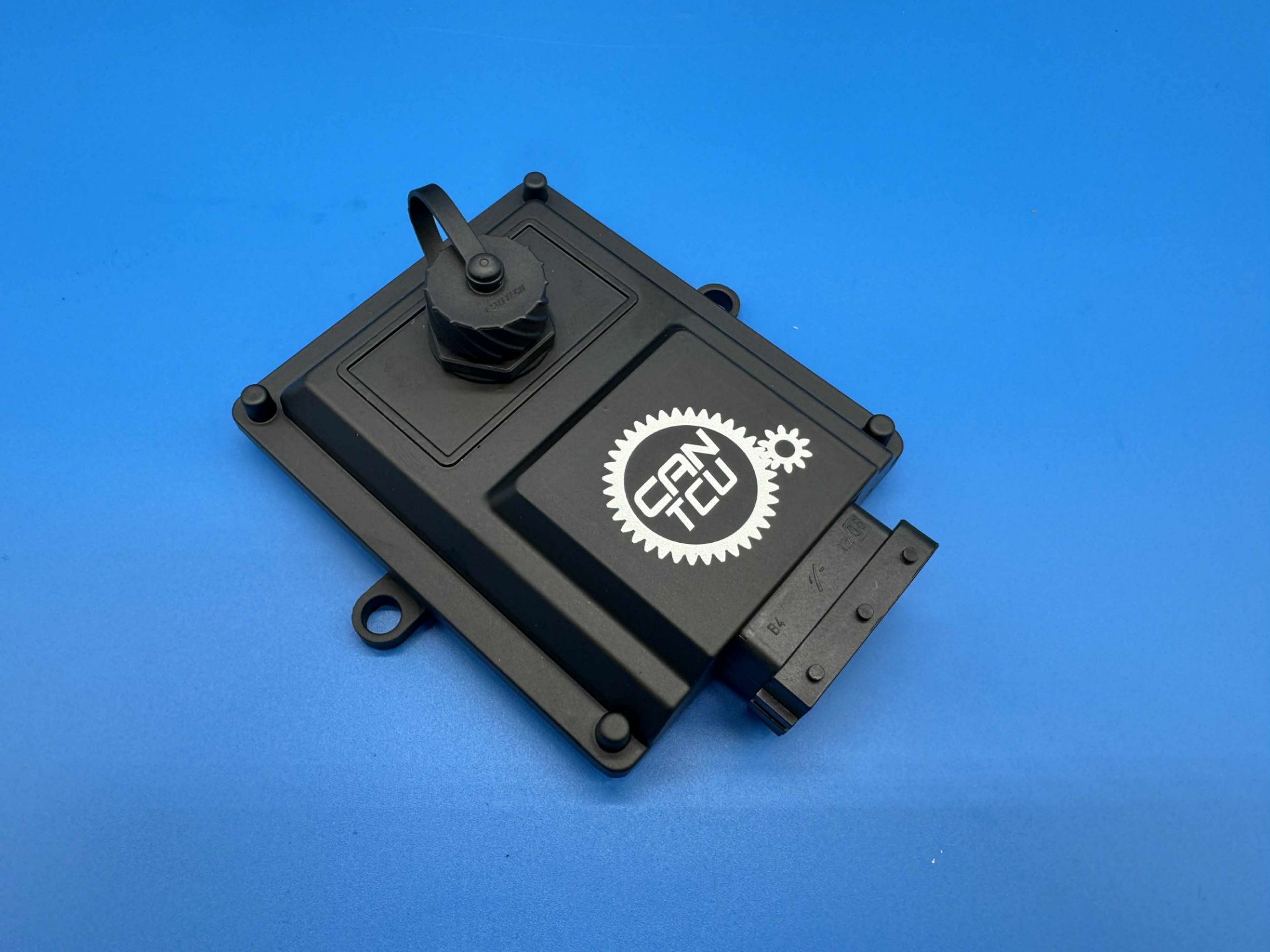

Initially released in 2021, CANTCU is the first and most advanced CAN-based transmission controller for controlling BMW’s 8HP/DCT transmissions.
- Retains OEM transmission control module inside the transmission
- OEM drivability in all driving situations
- All safety functions working
- No soldering -> no risk of damaging hardware
- Built-in Flasher for unlocking the transmission immobilizers -> no need to spend extra money/time on unlocking
Supported transmissions
- 1st Generation BMW F-Series 8HP transmissions (45/70/90)
- 2nd Generation BMW F-Series 8HP transmissions (50/75/95)
- 2nd Generation BMW G-Series 8HP transmissions (50/75)
- 2nd Generation BMW F-Series DCT transmissions (GS7D36SG/GS7D70SG)
- 1st Generation BMW E-Series DCT transmissions (GS7D36SG)
Supported ECUs
- BMW E6/7/8/9x
- E46 MS43/EDC16
- MaxxECU
- Emtron
- Motec
- Haltech
- ECUMaster
- Syvecs
- …and many more
Package Contents
- CANTCU Control Unit
- 24-pin Connector and pins
- USB-A to USB-B cable
- 4x 120 ohm terminating resistors
For more Information, Visit the CAN Performance Wiki
